Description

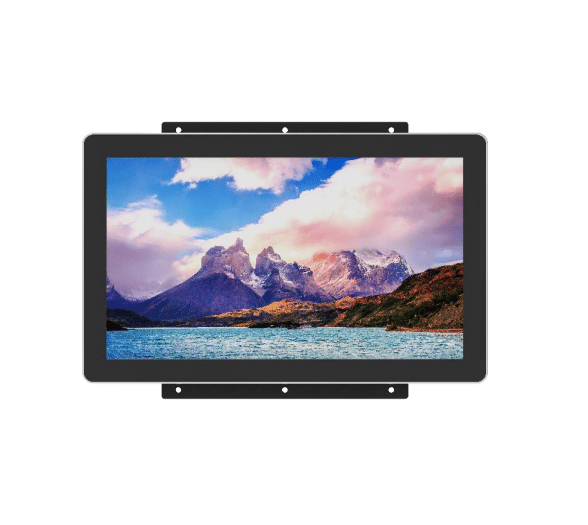

This compact yet robust 14” panel PC is purpose-built for tough industrial environments such as food production, processing lines, and cleanrooms. It boasts a Full HD 1920×1080 display with 250cd/m² brightness and a wide 178° viewing angle, ensuring crisp visuals in any light. The 10-point PCAP touchscreen, protected by 3mm hardened glass and Ilitek touch technology, offers responsive, glove-compatible input.
Powered by an Intel® i5-1135G7 processor, 8GB RAM, and a 128GB SSD, it runs Windows 11 Pro for secure and efficient performance. The fanless design, ≥6H hardened glass, and 100x100mm VESA mounting ensure durability and easy integration. With built-in Wi-Fi, Bluetooth, USB, HDMI, and RS232 ports, it provides comprehensive connectivity—perfect for applications where hygiene, reliability, and consistent operation are essential.
| Category | Specification |
|---|---|
| Model | 14” Stainless Steel i5 Touch Panel PC |
| Display | 14″ LCD Panel, Full HD 1920×1080, LED backlit |
| Active Area | 310(H) × 175(V) mm |
| Pixel Pitch | 0.1611 × 0.1611 mm |
| Brightness | 250 cd/㎡ (also noted as 300 cd/㎡ Typ.) |
| Contrast Ratio | 1000:1 (Typ.) |
| Viewing Angle | 178° (89/89/89/89 Typ. @ CR ≥10) |
| Color Depth | 16.7M True Colors |
| Surface Treatment | Hard Coating (3H) |
| Frame Rate | 60 Hz |
| Touchscreen | 10-point PCAP, 3mm glass, Ilitek Touch Solution, glove-compatible |
| Processor | Intel® 11th Gen Core™ i5-1135G7, up to 2.4 GHz |
| Memory | 8GB RAM (noted elsewhere as 16GB DDR4) |
| Storage | 128GB SSD |
| Operating System | Windows 11 Pro 64-bit |
| BIOS | AMI UEFI BIOS |
| Connectivity | Wi-Fi (2.4G/5G), Bluetooth 4.0, Intel® 1Gbps PCIe Ethernet |
| I/O Ports | 4 x USB 3.0, 2 x USB 2.0, 1 x HDMI out, 4 x RS232, 1 x LAN |
| Power Input | 12V, 5A |
| Power Consumption | < 65W |
| Mounting Option | 100x100mm VESA mount |
| Enclosure | Stainless Steel, IP65 Rated |
| Operating Temp | -10° to 50°C / Humidity 20%–80% |
| Storage Temp | -20° to 60°C / Humidity 10%–90% |
| Included Accessories | Adapter, Power Plug Cable, Manual |
| Languages | Multi-language support |
| Product Use | Industrial environments: food production, cleanrooms, processing, etc. |
